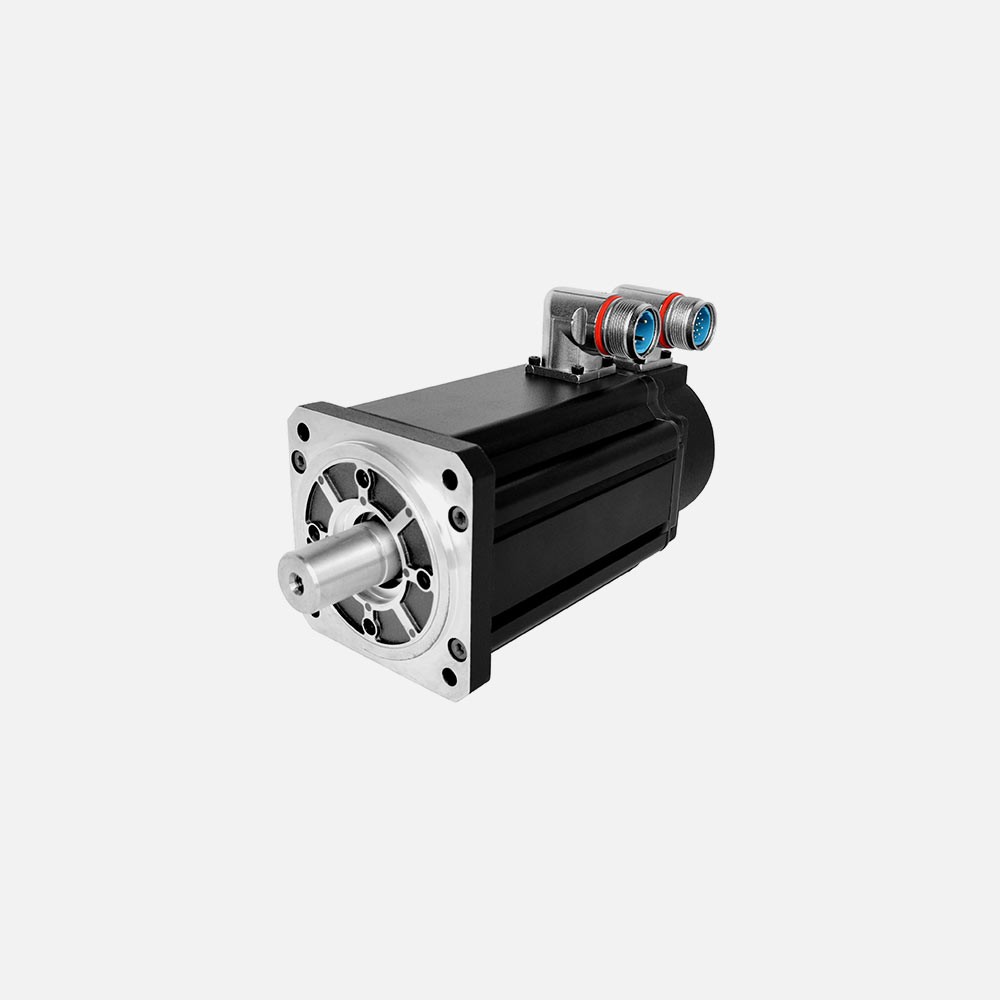

80S Series (80mm)
| 机能数据 |
| 型号 | 极对数 | 额定电压 | 额定功率 | 额定力矩 | 额定转速 | 最大力矩 | 额定电流 | 最大电流 | 扭矩常数 |
| Units | / | VDC/VAC | W | N.m | rpm | N.m | A | A | N.m/A |
| 80S01330A3EMRD | 5P | 311/220 | 400 | 1.3 | 3000 | 3.9 | 2.2 | 6.6 | 65 |
| 80S02430A3EMRD | 5P | 311/220 | 750 | 2.4 | 3000 | 7.2 | 3.9 | 10.8 | 0.65 |
| 80S03220A3EMRD | 5P | 311/220 | 1000 | 3.2 | 3000 | 9.6 | 6.2 | 18.6 | 0.65 |
| 型号 | 转子惯量 | 反电势常数 | 绝缘耐压 | 防护等级 | 编码器类型 | 运行环境 | 沉量 | 长度 |
| Units | Kg*cm? | V/Krpm | / | / | / | / | Kg | mm |
| 80S01330A3EMRD | 1.15 | 39 | F | IP64 | 2500ppr incremental encoder | -20℃ to 40℃ humidity＜90% | 2.6 | 125mm |
| 80S02430A3EMRD | 1.36 | 39 | F | IP64 | 3.3 | 147mm | ||
| 80S03220A3EMRD | 1.9 | 39 | F | IP64 | 3.9 | 167mm |
| 概括图 |
