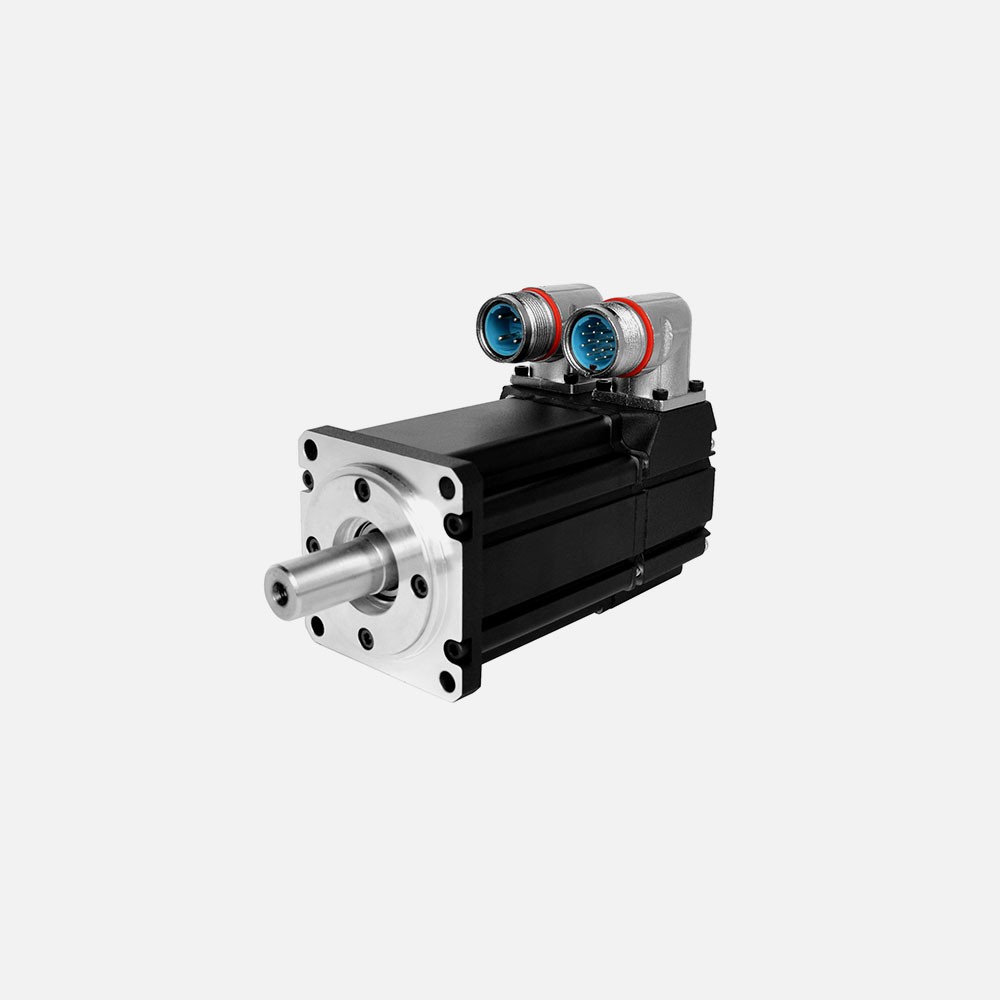

60S Series (60mm)
| 机能数据 |
| 型号 | 极对数 | 额定电压 | 额定功率 | 额定力矩 | 额定转速 | 最大力矩 | 额定电流 | 最大电流 | 扭矩常数 |
| Units | / | VDC/VAC | W | N.m | rpm | N.m | A | A | N.m/A |
| 60S00730A3EMRD | 5P | 311/220 | 200 | 0.637 | 3000 | 1.91 | 1.4 | 4.2 | 0.5 |
| 60S01330A3EMRD | 5P | 311/220 | 400 | 1.27 | 3000 | 3.9 | 2.8 | 8.4 | 0.5 |
| 型号 | 转子惯量 | 反电势常数 | 绝缘耐压 | 防护等级 | 编码器类型 | 运行环境 | 沉量 | 长度 |
| Units | Kg*cm? | V/Krpm | / | / | / | / | Kg | mm |
| 60S00730A3EMRD | 0.32 | 30 | F | IP64 | 2500ppr incremental encoder | -20℃ to 40℃ humidity＜90% | 1.3 | 115 |
| 60S01330A3EMRD | 0.51 | 30 | F | IP64 | 1.8 | 140 |
| 概括图 |
